China ODM Mini outturnner multicopter RC brushless dc motor 2817 500kv for helicopters

Name: China ODM Mini outturnner multicopter RC brushless dc motor 2817 500kv for helicopters
Brand: Brotherhobby
Price: 1 USD

Place of Origin : shenzhen

Brand Name : Brotherhobby

Model Number : BHM2817

Certification : CE, ROHS

Style : Radio Control Toy

Power : battery

KV : 500

Item : brushless dc motor

No.of Cells( Lipo) : 3-4s

Stator Diameter : 22mm

Stator Length : 17mm

Shaft Diameter : Φ4mm

Material : metal

Type : Multicopter

Price : $ 14/pcs

Packaging Details : Plastic box with inner poly bag

Delivery Time : 5-7 days

Payment Terms : T/T western union

Supply Ability : 200000/month

MOQ : 10 piece

Contact Now

China ODM Mini outturnner multicopterRC brushless dc motor2817 500kv for helicopters

Design feature:

1. Long life of Japan NMB ball bearings.

2. Efficient Japanese Kawasaki stator steel.

3. Rare earth magnets stable up to 180°.
4. Anaerobic pure copper wires.
5. CNC machinng aluminum alloy shell.
6. The Silicone wire leads.
7. The balance of the patent technology.
8. The Unique connection method.

2817 Multicopter outurnner brushless dc motor

Technical Datas
Technical Datas
KV		500		Idle Current @ 10.0V		0.4A
Configu-ration		12N14P		No.of Cells( Lipo)		3-4S
Stator Diameter		22mm		Max continuousCurrent (A) 60S		20A
Stator Length		17mm		Max continuous Power (W) 60S		300W
Shaft Diameter		Φ4mm		Max efficiency		>80%

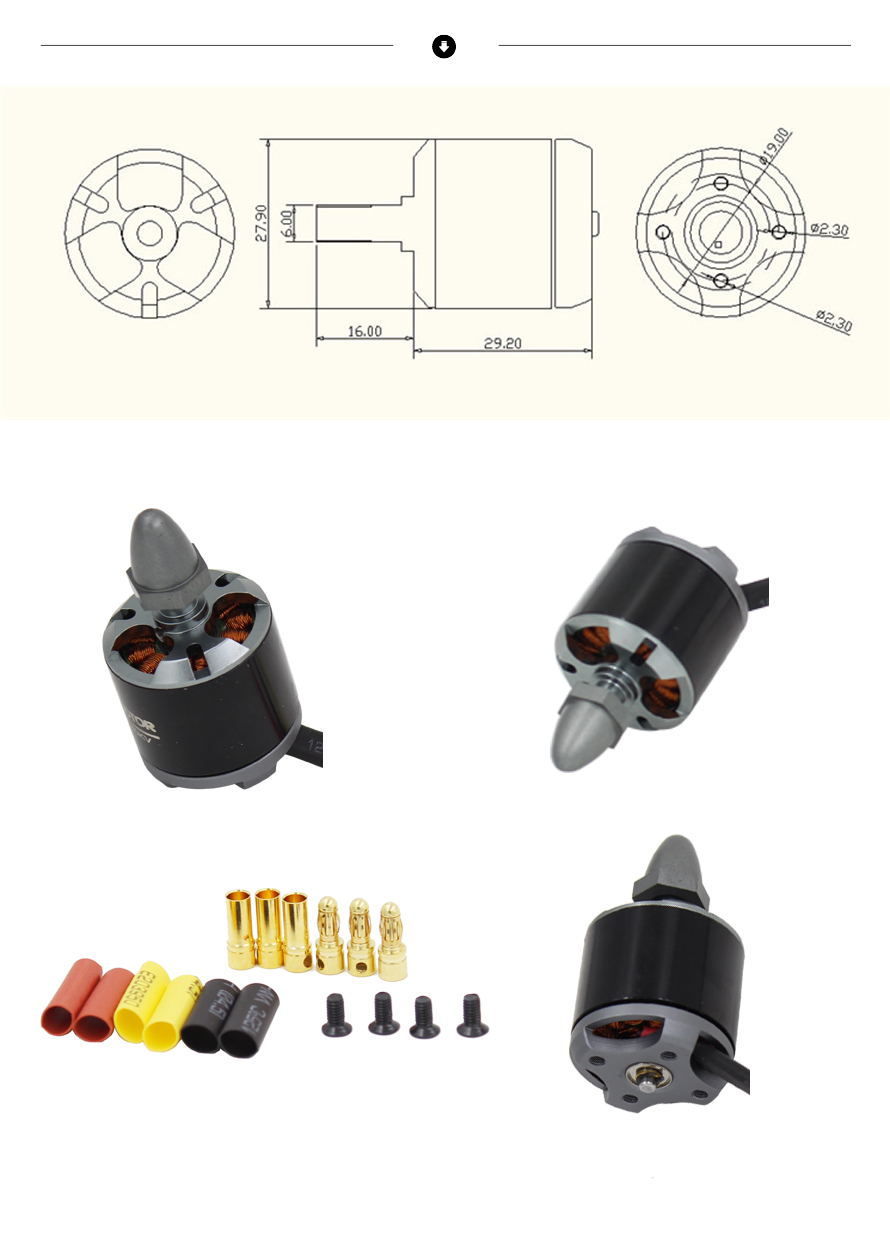

Motor Dimension( DiaxL)		28x29mm		Interal resistance		0.118ohms
Net Weight( g )		72		Recom. Speedcontroler		25A

Tested with 100A ESC				Tested with 100A ESC
Prop	Volts (V)	Amps (A)	Thrust (g)	Prop	Volts (V)	Amps (A)	Thrust (g)
8*8(APC)	11.1	2.2	180	9*4(APC)	11.1	1.9	200
	14.8	3.4	300		14.8	2.9	345
	18	4.6	425		18	3.9	490
	22.2	6.4	623		22.2	5.4	720

Tested with 100A ESC				Tested with 100A ESC
Prop	Volts (V)	Amps (A)	Thrust (g)	Prop	Volts (V)	Amps (A)	Thrust (g)
10*5(APC)	11.1	2.4	315	12*3.8(APC)	11.1	4.4	525
	14.8	3.8	520		14.8	7.1	857
	18	5.3	751		18	9.7	1160
	22.2	7.4	1098		22.2	13.0	1560

Tested with 100A ESC
Prop	Volts (V)	Amps (A)	Thrust (g)
13*8(APC)	11.1	5.1	620
	14.8	7.7	950
	18	10.0	1270
	22.2	13.0	1660

China ODM Mini outturnner multicopter RC brushless dc motor 2817 500kv for helicopters

Packaging Detail:

China ODM Mini outturnner multicopter RC brushless dc motor 2817 500kv for helicopters

Product Tags:

brushless motor

brushless rc motor

brushless dc motor
